large size fire tube hot water water tube boiler for hotel

FOB Reference Price:Get Latest Price
$7,800.00 - $115,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
SZS15-1.6-Y(Q)
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Machinery Repair Shops, Restaurant, Energy & Mining
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Structure:
Water Tube
Pressure:
Low Pressure
Style:
Horizontal
Fuel:
Gas and oil fuel
Place of Origin:
Henan, China
Brand Name:
Fangkuai
Output:
Hot Water
Dimension(L*W*H):
1110*765*520
Weight:
41 ton
Certification:
CE ISO ASME GHOST
Warranty:
1 Year, 12 month
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
hot water boiler for hotel
Material:
Special Boiler Steel Plate
Application:
hospital industry
Thermal efficiency:
98%
Rated evaporation:
10-70 MW
Rated working pressure:
1.25-1.6 MPa
Diesel oil consumption:
914-5980 Kg/h
Natural gas consumption:
1004-7065 Nm^3/h
Applicable fuel:
gas & oil
Supply Ability
Supply Ability:
47 Unit/Units per Month hot water boiler for hotel
Packaging & Delivery
Packaging Details
small parts packed in wooden cases, big parts in nude
Port
Qingdao ,Tianjin,Shanghai for hot water boiler for hotel
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 To be negotiated

large size fire tube hot water water tube boiler for hotel

Product Description

The structure is Double drum, vertical and D-shaped. Water, steam or steam-water mixture flows in the tube, flame and exhaust air are burned and flowed outside the tube. It has very fast steam-water velocity and excellent water circulation system. The heat absorption rate and thermal efficiency of the boiler are greatly improved.

Product Advantages:

1.Sufficient outlet

2.Efficient heat transfer

3.Good water circulation

4.Smale and air Leakage elimination

5.Easy, convenient installation and maintenance

6.Green environmental protect

7.Save energy

Products Parameter
ModelUnitSZS10.5-1.25 /130/70-Y(Q)SZS14-1.25 /130/70-Y(Q)SZS17.5-1.6 /130/70-Y(Q)SZS21-1.6 /130/70-Y(Q)SZS24.5-1.6 /130/70-Y(Q)SZS29-1.6 /130/70-Y(Q)SZS46-1.6 /130/70-Y(Q)SZS58-1.6 /130/70-Y(Q)SZS70-1.6 /130/70-Y(Q)
Stable thermal powerMW10.51417.52124.529465870
Rated water-outlet pressureMPa1.251.251.61.61.61.61.61.61.6
Gas supply pressureNatural gasmbar300450500
City gasmbar300450500
Liquefied petroleum
gas
mbar300450500
Fuel
consumption
Diesel oilkg/h914.51245.51531.871880.552134.12522.83934.35028.75980.8
Fuel-oilkg/h950.81267.71584.71901.62218.62641.14157.35236.56319.9
Natural gasNm³/h1004.81388.31712.692115.962344.52825.34412.15672.77065
City gasNm³/h2040.82721.13401.44081.64761.95668.910081.512698.615325.9
Liquefied petroleum gasNm³/h367.4489.8612.3734.8857.21020.53934.34955.55980.8



Product Details

natural gas fire tube combi hot water italian gas boilers  details:

Crimping



The max thickness of the plate is 30mm,the max width is 2500mm, the max diameter is 2600mm.

Welding



1.good welding    quality and beautiful  shape

2.Save welding    materials.



Grooving



1.The linear error is less than 0.3mm/m.

2.The surface smoothness reaches Ra6.3.









Turnover machine



Convenient for tube-sheet welding.


Processing Equipment



Corrugated Furnace Firing

CNC Cutting

Edge Cutting

Intersecting line Cutting


Related Products

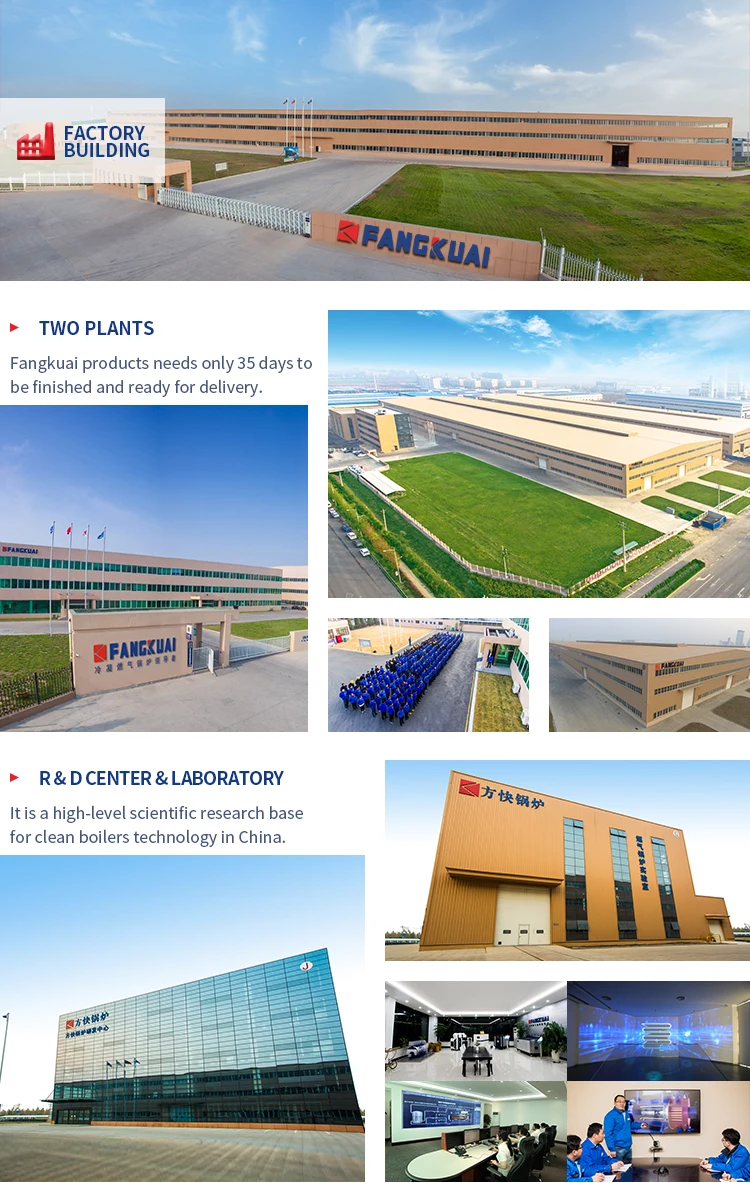

Company Information



Company Advantage:

(1)  Established in 1998;

(2)  workshop:120000 square meters;

(3)  Clean Fuel Boiler Manufacturer;

(4)  National Grade-A Manufacturing Qualification;

(5)  National Class-One Installation Qualification.

Core Technology







Ultra speed smoke cooling tube

Ultra speed smoke cooling tube, high efficiency, energy saving and advanced condensing technology guarantee high efficiency of energy utilization. Through latent heat absorption of vaporization in the exhaust air, energy is utilizing efficiently. It saves energy and improves thermal efficiency.




FGR technology

FGR technology is recycling a part of exhaust smoke(temperature of 150℃-350℃) back into the burner to complete secondary combustion along with a lower furnace temperature. Thus, NOx emission can be reduced to a great extent.












Intelligent Cloud service 3.0

1.Real time monitoring.

2.Date analysis.

3.Optimization suggestion.

4.Maintenance.

5.Safety alarming.

6.400 Hotline service.

Certifications

Thanks for your visiting our website,we have rich project experience,our products have been exported to more than 60 countries,including Russia,Singapore,Malaysia,Bangladesh,etc.

Clicks Here to Get Boiler Cataloge!
